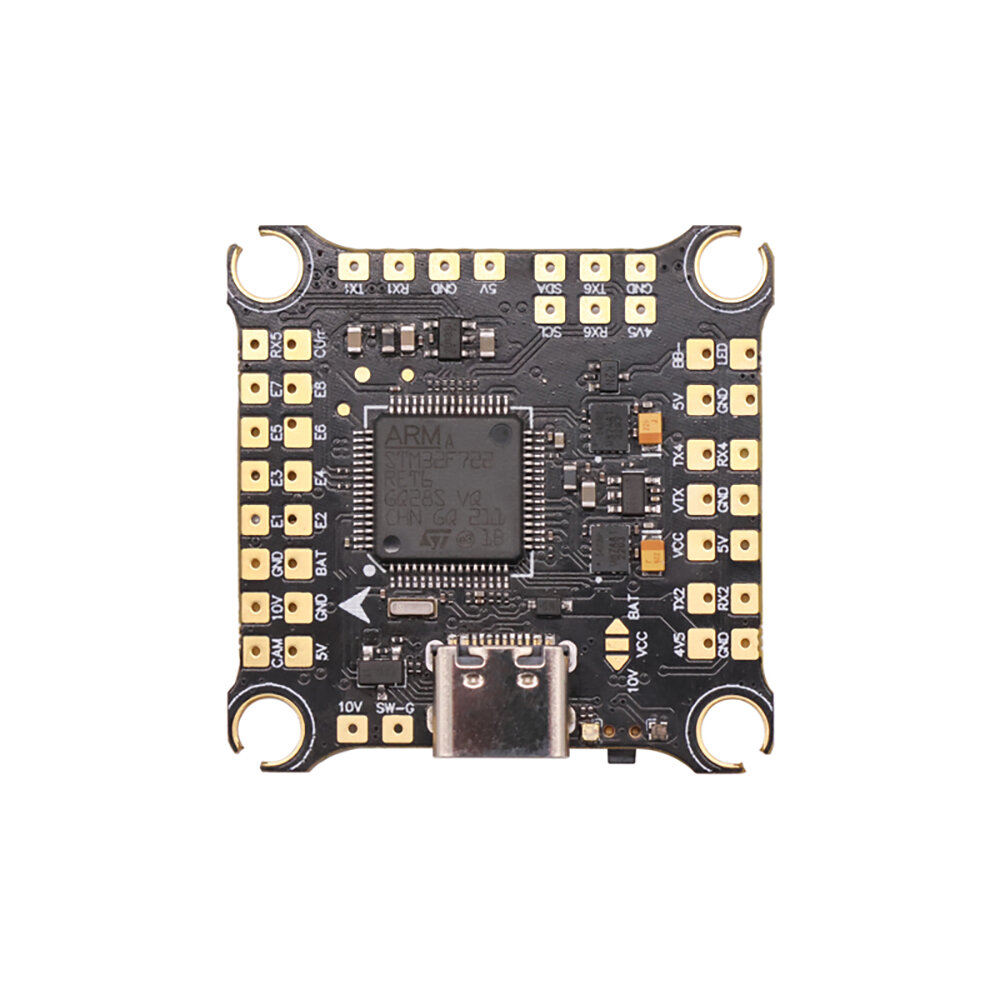

30.5×30.5mm HAKRC F7230V2 F7 OSD Flight Controller 2-6S Dual Gyro with 5V 10V BEC Built-in Current Sensor for RC Drone FPV Racing

Description

Specifications:
Brand: HAKRC

Model:  F7230V2

Item Name: 30.5×30.5mm F7 2-6S Flight Controller
CPU: STM32F722RET6
IMU: ICM42688 Dual Gyroscope
OSD: AT7456E
Barometer: Integrated
Black Box: 16M
BEC: 5V/3A, 10V/2.5A
LED: Adjustable LED lights
Sensor: Built-in current sensor
Firmware Version: HAKRCF722V2 4.4
Compatible Futaba / Frsky/ Flysky/ TBS CRSF/ DSMX/DSM2 Receiver

Input Voltage: 2-6S
UART Ports: 6
Dimension: 36* 36mm

Mounting Hole: 30.5×30.5mm
Net Weight: 8.5g

Features:
High-End PCB Design: The use of a high-end 6-layer PCB with a 1oZ thickened copper skin offers exceptional anti-interference capabilities, ensuring smooth and reliable performance.

Dual Gyroscope System: The implementation of a dual-gyroscope design greatly reduces the errors associated with single gyroscope systems, leading to more precise control and better flight performance.

Industrial-Grade LDO: Equipped with an industrial-grade LDO, this product provides excellent heat resistance, contributing to a more stable operation in different temperature conditions.

User-Friendly Connector: The direct plug-in connector design eliminates the need for soldering, making the installation process quick and hassle-free.

Customizable LED Features: The flight controller boasts 4 onboard programmable LED lights with customizable effects. It also includes a reserved 10V power supply for an external LED strip that can be controlled through custom settings on your remote controller. This feature allows for personalized light displays during flights.

Package Includes:
1x Flight Controller

5x Connection Cable

4x Anti-vibration Ball
