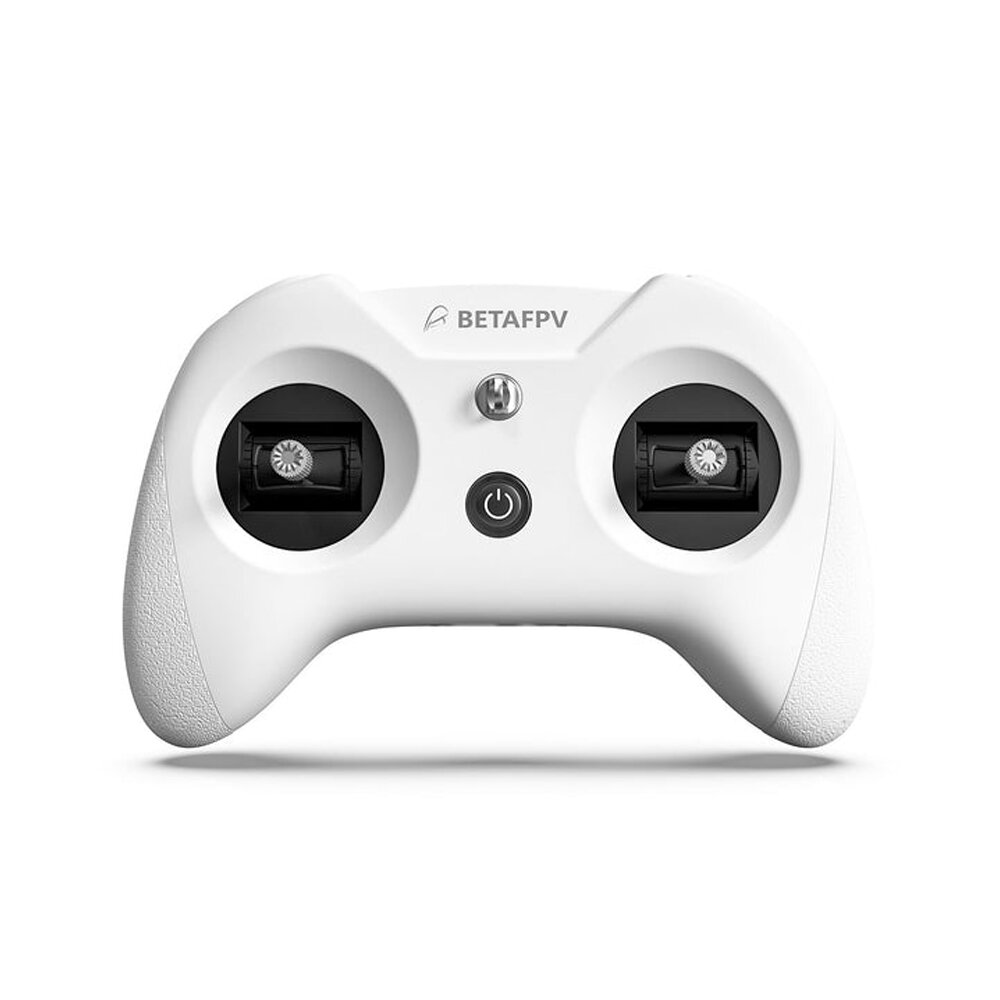

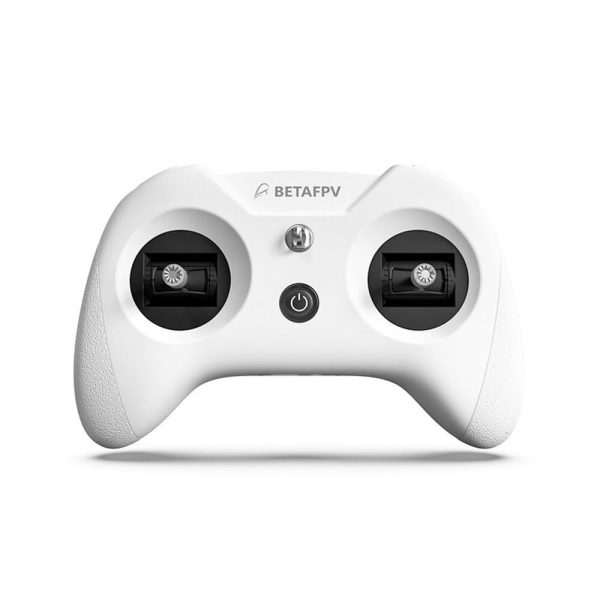

BETAFPV LiteRadio 3 ExpressLRS ELRS 2.4GHz FrSky Radio Transmitter Built-in Battery USB Charge Simulator Compatile Nano Module for RC Drone

Description

BETAFPV LiteRadio 3 ExpressLRS ELRS 2.4GHz FrSky Radio Transmitter Built-in Battery USB Charge Simulator Compatile Nano Module for RC Drone

Specification:

Brand Name: BETAFPV

Item Name: LiteRadio 3 Radio Transmitter

Frequency Range: 2.4G

2.4G System: CC2500/SX1280

Channel: 8CH

Support Protocol: Futabas S-FHSS/Frsky FCC D16/Frsky LBT D16/Frsky D8, ExpressLRS 2.4G

Power: ELRS version 25mW/50mW/100mW, Frsky version 100mW

Adapted Drone Type: Multirotor, Airplane

Support USB Charging / Firmware Update

Support BETAFPV Configurator / Most Practice Simulator

LED Light: Green-Power On / Red-Warning if the voltage is lower than 3.5V / Blue-Normal

Battery: Built-in 2000mAh 1S Battery

Charging Connector: USB 3.0 Type-C

Recommend External TX Module: ELRS Nano TX Module

Recommend Accessories: Nano Gimbal for LiteRadio 3, Storage Case, Transmitter Neck Strap

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-levels 8-channel radio.

8 channels in total.

USB Joystick support for most practice simulators.

Nano module bay for external TX module.

Newly designed joystick gimbal for longer usage life.

Support BETAFPV Configurator for updating, configuring, and tuning.

Provide ExpressLRS 2.4G protocol version and Frsky protocol version for option.

Built-in 2000mAh battery and USB charge supported.

Features:

– LiteRadio 3 upgrades with BETAFPV self-developed Customized LiteRadio System. Pilots can directly operate the Joystick Calibration and Firmware Update on the radio transmitter, which is more convenient for the beginner racer to operate.

– Equipped with a built-in 2000 mAh 1S battery, LiteRadio 3 can work up to 15 hours without an external module, bringing an excellent endurance performance.

– Comes with a built-in charging module, LiteRadio 3 supports USB charging which is more convenient to use. Meanwhile, it designs a Low-Power warning to indicate a low battery. It indicates a low battery and needs to be re-charged if the blue light flashes slowly and the buzzer beeps continuously.

– Newly designed with a nano bay, it supports the external TX module. Highly recommend BETAFPV ELRS Nano Module, which is compatible with the LiteRadio 3 radio transmitter and makes CRSF protocol available.

– Adopted the rubber coat, LiteRadio 3 is ergonomic and has the shape of a gaming controller. It’s comfortable to hold, and the anti-slip texture on the handles allows for a solid grip.

– It is the safest and quickest method to get started by using a model practice simulator for starters. LiteRadio 3 radio transmitter supports most of the simulators on market with comprehensive configuration.

How to switch the protocol:

Note: Switching internal protocol is only available for the Frsky version radio transmitter. ExpressLRS version can only switch to the external TX module.

To change protocols and TX module, here are the steps:

Power the radio transmitter off;

Press and hold the BIND button while powering the radio transmitter back on;

Then the flash color and times of the LED before buzzer alarms will change, according to the tables above.

The Frsky version could support 4 different internal protocols, including Frsky D16 FCC, Frsky D16 LBT, Frsky D8, and Futabas S-FHSS. The protocol is indicated by the flashing times of the LED when power on, before the buzzer alarms.

FrSky Version

LED Status	Protocol Version
Red Flash once	Internal Frsky D16 FCC (ACCST 1.X Version)
Red Flash twice	Internal Frsky D16 LBT (ACCST 1.X Version)
Red Flash Three Times	Internal Frsky D8
Red Flash Four Times	Internal Futabas S-FHSS
Purple Flash Three Times Quickly	Internal TX Module Off and Run External TX Module

ExpressLRS Version

LED Status	Protocol Version
Red Flash once	Internal ELRS
Purple Flash Three Times Quickly	Internal TX Module Off and Run External TX Module

Note:

LiteRadio 3 Frsky version only works with D16 ACCST 1.X Frsky protocol. So if you use a Frsky receiver with D16 ACCST 2.X version or ACCESS version, the binding will fail.

Package Included:

1 x LiteRadio 3 Radio Transmitter

1 x User Manual
