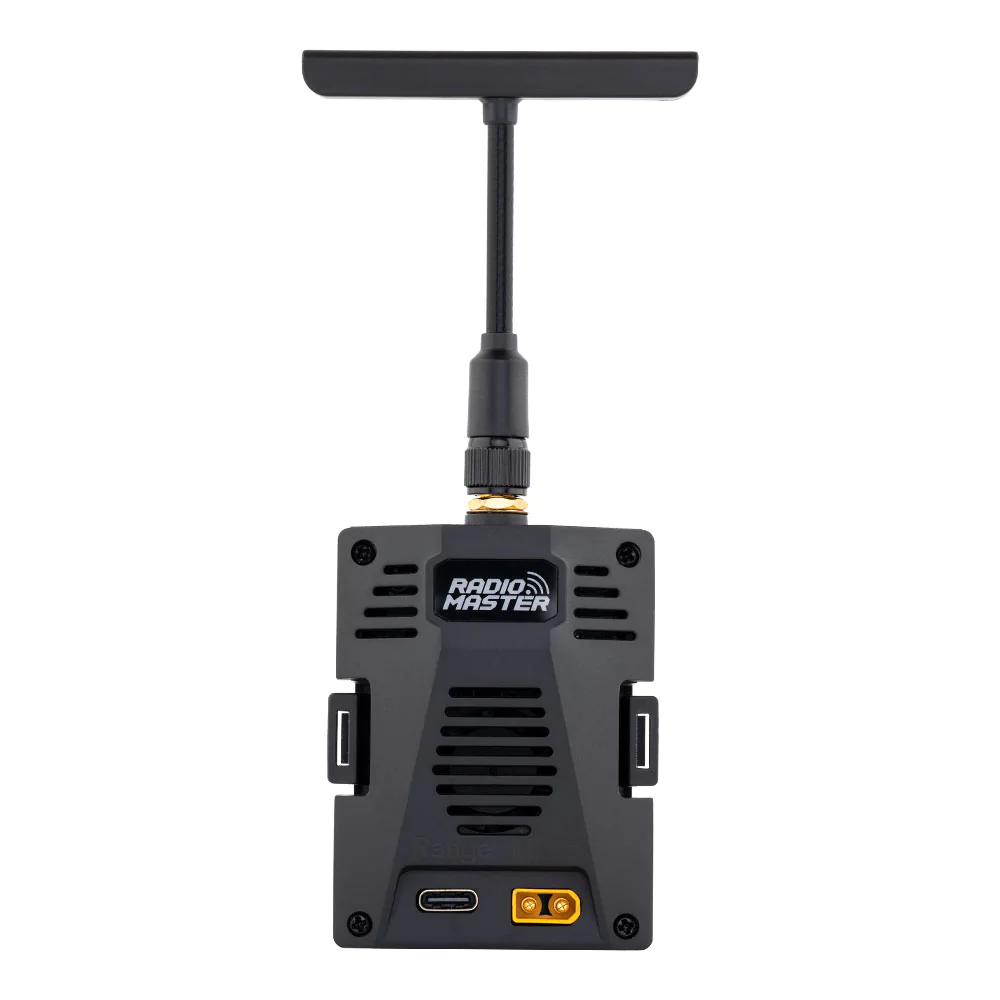

Radiomaster Ranger Micro 2.4GHZ ExpressLRS RF Module Up to 1Watt Power Output Support Wifi Bluetooth High-efficiency Cooling System for TX16S MKII TX12 MKII Radio Transmitter

Description

Radiomaster Ranger Micro 2.4GHZ ExpressLRS RF Module Up to 1Watt Power Output Support Wifi Bluetooth High-efficiency Cooling System for TX16S MKII TX12 MKII Radio Transmitter

Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

*Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.

Specification:

Brand: Radiomaster

Item: Ranger Micro Module

Regulatory Domain: ISM2400

MCU: ESP32(main), ESP8285(aux,as ESP backpack)

RF chip: SX1281IMLTRT

Frequency Range: 2400 MHz – 2480 MHz

Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)

Minimum receiver refresh rate: 25Hz

RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)

Wifi Support: Yes

Bluetooth support: Yes

XT30 Power supply voltage: DC 6V – 16.8V

Weight:  50g (with antenna) / 40.5g (without antenna)

Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)

Features:

* High-efficiency cooling system

* Up to 1Watt Power output

* Wifi and Bluetooth support

* Packet rates up to F-1000Hz

* T-antenna included

* With the Micro connector, support TX16S MKII and TX12 MKII radio

Package Includes

1 * Ranger Micro Module

1 * T Antenna
